Drinking Water Filter Equipment High Precise Inox ss316 L / C

ASME CE filter equipment high precise filter housing inox ss316 L/C

Specificatios:

Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of the follow-up process of water; sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.

High precision filter Working Principle

Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.
Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter.
Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.

Commonly used wound filter and meltblown filter

Wound filter (also known as honeycomb filter), there are two types: one is polyp

ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.

Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃.

Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.

High precision filte Composition

Cartridge filter is mainly composed by the

filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it’s used in the acid and other special occasions,it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.

Filter Housing Operating Parameters

Introduction:

The stainless steel filter housing can be used together with various types of cartridges. The inside and outside surfaces are polished finish with reasonable structure and no dead angle. It is convenient to install and clean, can achieve to the filtration effects required by the customers. Its design conforms to GMP standards in medical industry. The filter includes liquid filter and gas filter.

Inner surface: mirror polishing or electrolytic polishing.
Outer surface: matt, mirror polishing or electrolytic polishing.

Seal ring: food-grade silicone rubber seal ring, with quality assurance.

Locking type: clamp, sanitary casing or bolts can be fast assembled and disassembled.

Detection method: each filter has gone through a hydrostatic pressure test under the pressure up to 1.25 times

Application:

1. Pure water, bottled water, fine filtration, clarification of a variety of industrial

2. Purify variety of chemical solution.
3. Water treatment and medicine, liquor and beverage clarification and enrichment.

4. Beer, grape wine, yellow wine, wine and beverage industry

1. Nanofiltration(NF), Ultrafiltration(UF), Reverse Osmosis(RO), Electrodialysis(EDI) system such as security filtering and terminal filtration.
2. Electronics, microelectronics, semiconductor industry with high water pre-filtration, terminal filtration.
3. Drinking purified water, mineral water, fruit juice, tea drinks, health drinks, filter.
4. Liquor, wine, beer, rice wine and other wine filtration, pure draft beer filtration sterilization.
5. Various types of liquid filtration, clarification, purification treatment ideal equipment.

Sock Filter Housing

Ametek Filter Housing

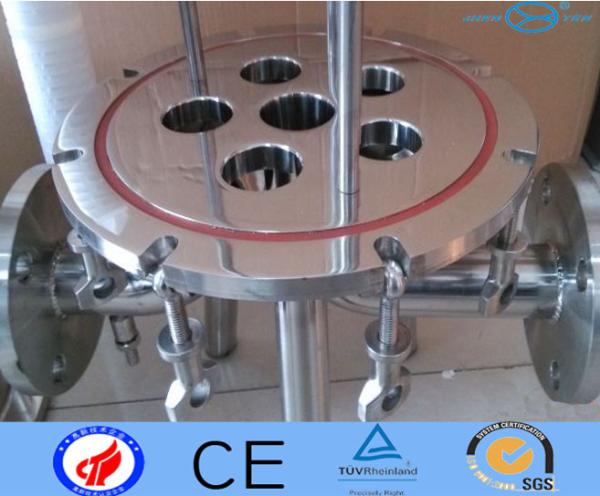

Drinking Water Filter Equipment High Precise Inox ss316 L / C Images
