Sanitary Grade 2B Cold Rooling Milk Stainless Steel Storage Tank With Jacket
Stainless Steel Storage Tank Typical Application:
Applicable for large milk collection center ,or for milk outdoor storage at large milk production plant,also used at other food and pharmacy factory for storage of liquid products.this equipment is equipped with cleaning system,agitator,sight and view devices,also have attachments of thermometer and level indication meter.
Stainless Steel Storage Tank standard attachments:
1)one air tight side manway
2)one side mounted agitator
3)one PT100 thermometer,temperature range 0-100°c
4)two cip cleaning ball
5)anti butterfly and dirt air vent
6)products inlet/outlet
7)cooling medium inlet/outlet
8)level sensor
9)ladder with circle protection and protection fence at tank top
Stainless Steel Storage Tank Main Parameters
| Item | Volume ( L) | A | B | C | D | E | F | G | Refrigerant Entry | Refrigerant Exit | Agitator (KW) | RPM | Liquid outlet |
| SS-03 | 30000 | 3050 | 3220 | 2170 | 800 | 5390 | 1100 | 6150 | 2B | 2B | 2.2 | 136 | 3S |
| SS-05 | 50000 | 3050 | 3220 | 2170 | 800 | 8025 | 1100 | 9225 | 2B | 2B | 2.2 | 136 | 3S |
| SS-06 | 60000 | 3050 | 3220 | 2170 | 800 | 9245 | 1100 | 10445 | 2B | 2B | 2.2 | 136 | 3S |
| SS-08 | 80000 | 3050 | 3220 | 2170 | 800 | 11990 | 1100 | 13190 | 2B | 2B | 2.2 | 136 | 3S |
| SS-10 | 100000 | 3450 | 3620 | 2370 | 800 | 11915 | 1100 | 13115 | 2B | 2B | 3.7 | 136 | 3S |
| SS-13 | 130000 | 3450 | 3620 | 2370 | 800 | 15255 | 1100 | 16455 | 2B | 2B | 3.7 | 188 | 3S |
Stainless Steel Storage Tank Material inspection
Surface roughness inspection
Heating ,cooling test
Riboflavin test
Electric test like: Mixing test, vibration test ,noise test and so on .

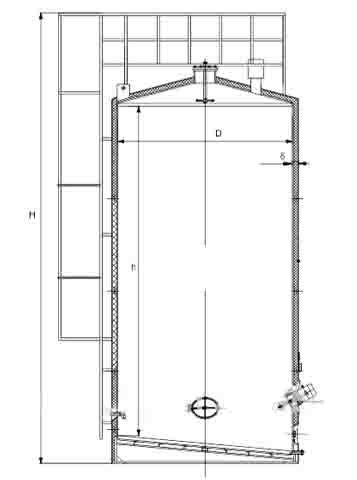

Stainless Steel Storage Tank Drawing
