Heating Cooling Stainless Steel Storage Tank Acid Hdpe lng Storage Tanks Three Layer

Name: Heating Cooling Stainless Steel Storage Tank Acid Hdpe lng Storage Tanks Three Layer
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : SS-1800

Certification : CE , ISO9001 , SGS , TUV , ASME U Stamp

Place of Origin : China （Zhejiang）

MOQ : 1 PC

Price : Can negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 sets/month

Delivery Time : 25 workdays

Packaging Details : plywood packing or according to customer requirements

Material : SS304 or SS316L or Duplex stainless or 904L

Condition : New

Function : Storage

Inner surface : Ra≤0.4 μm

Standard : GMP Standard

Warranty : 1 year

Design Pressure : -1 -10 Bar (g) or ATM B9

Work Temperature : 0-200 °C

Contact Now

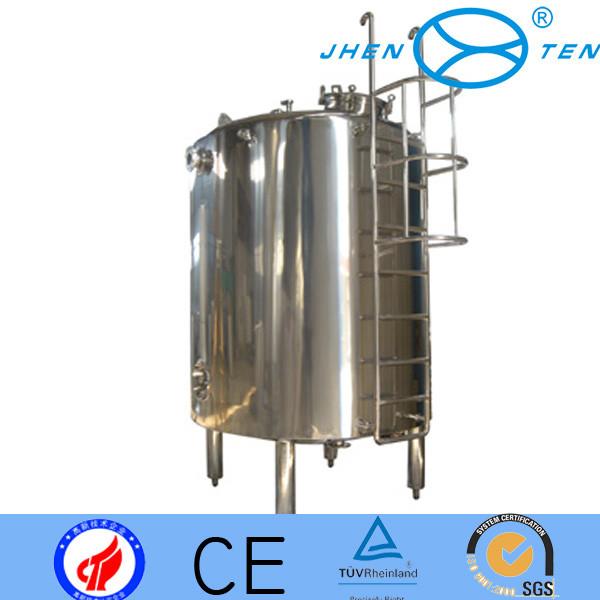

SS316L , SS304 Heating & Cooling Stainless Steel Storage Tank Three Layer

This equipment is applicable for the Chinese traditional medicine, foodstuff, chemicals and liquid substance storage. It's characterized by higher capacity and easy operation. In the store tank is an auto revolving spray system to guarantee that the site can be completed. SS304 stainless steel is adopted for it and processed in matt technology, meeting with the GMB standards.

The storage tank has sound temperature reserving property. The additional devices are inlet and outlet port, hole, thermometer, liquid level gauge, high-power level alarm, anti-fly, anti-dust sucker. Aseptic breathing holes(or Aseptic positive device), Aseptic asmpling port, CIP cleaning spray system and counter.

Main Parameters:

Item	Volume ( L)	A	B	C	D	E	F	G	Refrigerant Entry	Refrigerant Exit	Agitator (KW)	RPM	Liquid outlet
SS-03	30000	3050	3220	2170	800	5390	1100	6150	2B	2B	2.2	136	3S
SS-05	50000	3050	3220	2170	800	8025	1100	9225	2B	2B	2.2	136	3S
SS-06	60000	3050	3220	2170	800	9245	1100	10445	2B	2B	2.2	136	3S
SS-08	80000	3050	3220	2170	800	11990	1100	13190	2B	2B	2.2	136	3S
SS-10	100000	3450	3620	2370	800	11915	1100	13115	2B	2B	3.7	136	3S
SS-13	130000	3450	3620	2370	800	15255	1100	16455	2B	2B	3.7	188	3S

Sanitary Vessel Value and Performance Combination

Produce high Value-added pharmaceutical product and aseptic &safety food and beverage products all need high-quality sanitary vessel .And the key of produce high-quality sanitary vessel is excellent production capacity , high-quality material ,precision fabricate process, excat quality control and creative design , like aseptic operation, no dead corner design, CIP/ SIP, high-quality parts, easy to monitoring.

Service:

we will supply and confirm you with drawing before manufacturing.

we manufacture the equipment according the drawings.

we will free to sending the fittings which has broken at accident during two years.
