5000 Litre Stainless Steel Water Storage Tank Flexible Mobility With Buffer Storage
Feature
• Flexible mobility with buffer storage function, optional mixing cleaning, heating or cooling function, reasonable design of the brake wheel, pedal or forklift groove, suitable for raw materials or finished product of mobile, convenient off-line cleaning.

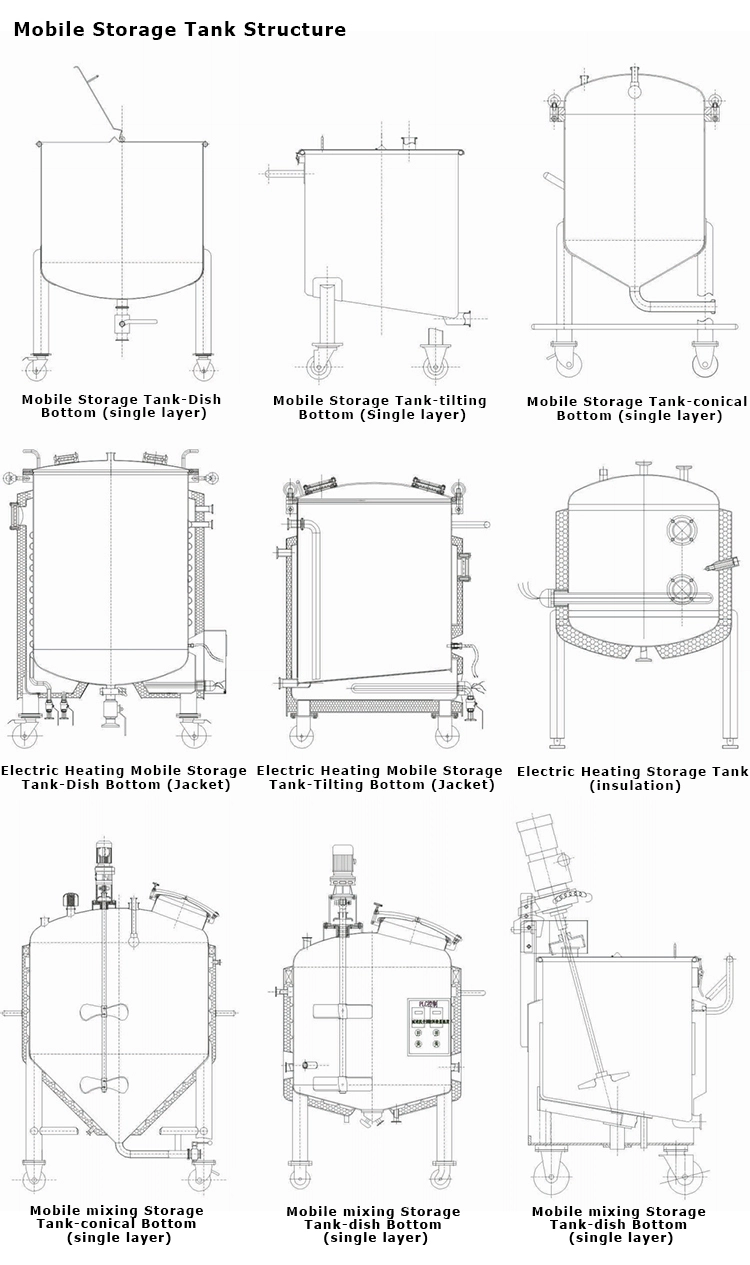

• Single layer tank or Optional jacket form or three layers with insulation. Material of insulation is Rock wool or PU.
• There are varieties of volume from 600L-20000L also it can be designed and customized according to the customers' equirements.
• Connector uses tri-clamp, inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customer's requirement.
Tank Optional Configuration
• Mobile Storage Tank Optional Configuration: sterile air filter, thermometer (digital display type or dial), pressure gauge, sight glasses, sanitarymanhole, in-outlet, CIP universal rotating cleaning ball, level gauge, etc, orconfigured according to customers' requirements.
Application
• Apply to dairy, beverage, pharmaceutical, cosmetic, grease, paintchemical and other industries of various kinds of material liquid movement, turnover, buffer, cleaning, suitable for transport and storage of powder and liquid.
| Design Parameter |
| Design pressure | Tank body (ATM-1.0MPa) |
| Jacket (ATM-0.5MPa) |
| Design temperature | Tank body and Jacket (0℃~160℃) |
| Material |
| Liner | 304, 316L |
| Jacket | 304 |
| Insulation | Rock wool or PU |
| Legs | 304 |
| Connection |
| In-outlet | Tri-clamp, Flange |
| Surface Finish |
| Finish type | Mechanical / electrolytic polishing, sand blasting, pickling |
| Polishing precision | Inner surface Ra≤0.4um |
| Outside surface Ra≤0.6um |
Normal Model And Main Technical Parameters
| Model | JTRYG-75 | JTRYG-150 | JTRYG-300 | JTRYG-600 | JTRYG-1000 |
| Effective volume(L) | 75 | 150 | 300 | 600 | 1000 |
| Tank | Diameter(mm) | Φ450 | Φ600 | Φ800 | Φ1000 | Φ1100 |
| Height(mm) | 460 | 550 | 600 | 800 | 1000 |
| Mxing | Power(kw) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 |
| RPM(r/min) | 200(propeller)(Can adjust the design according to the customers usage)
|
